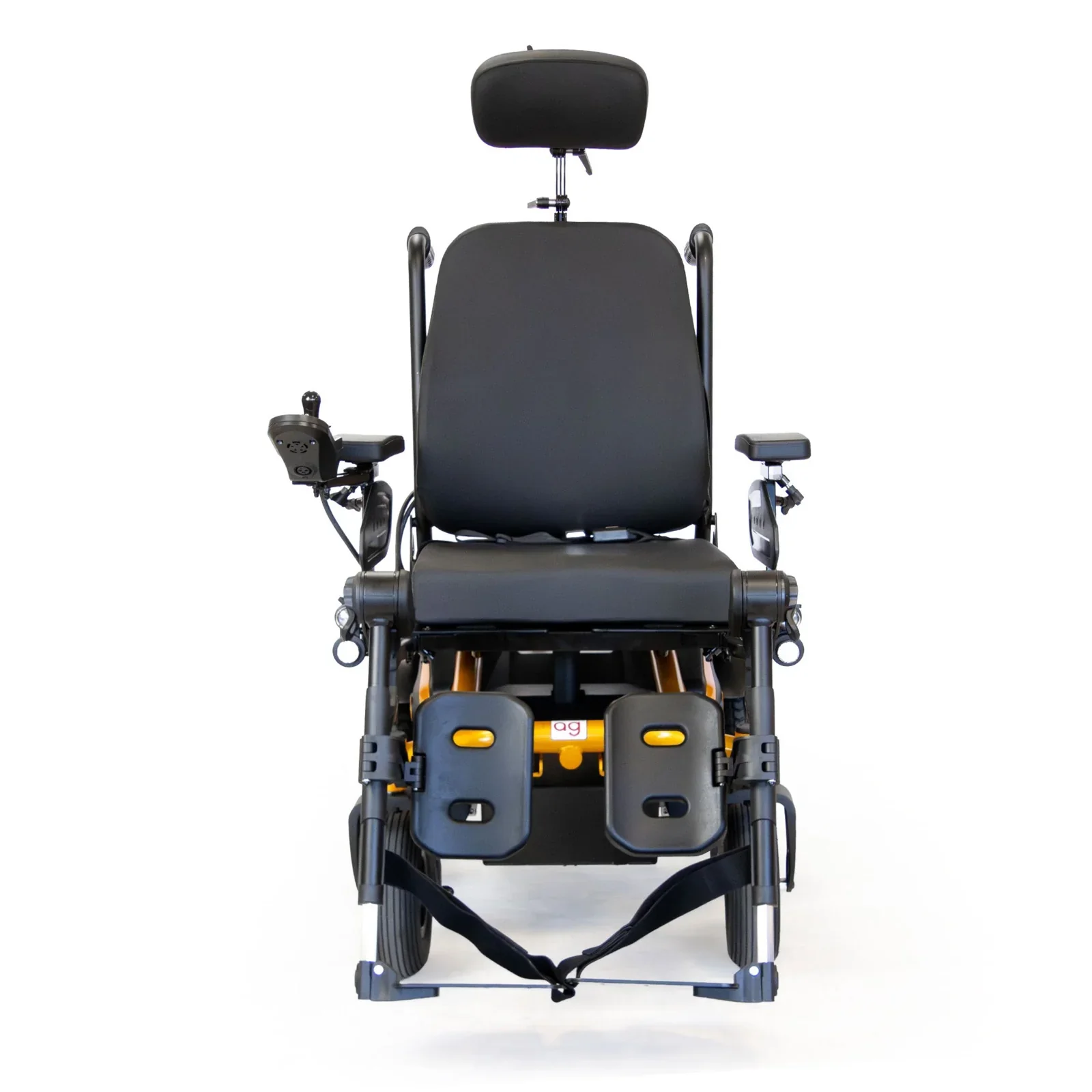

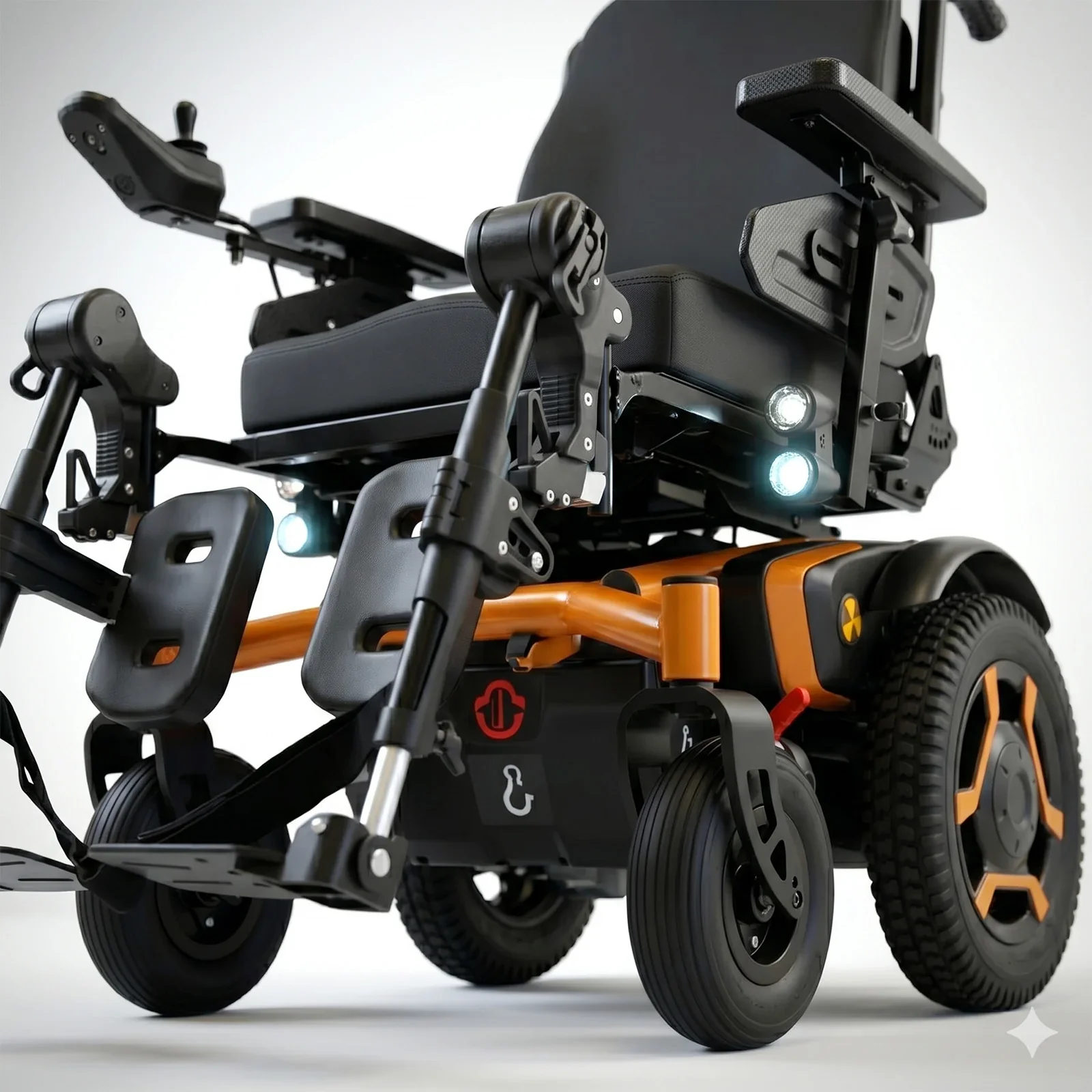

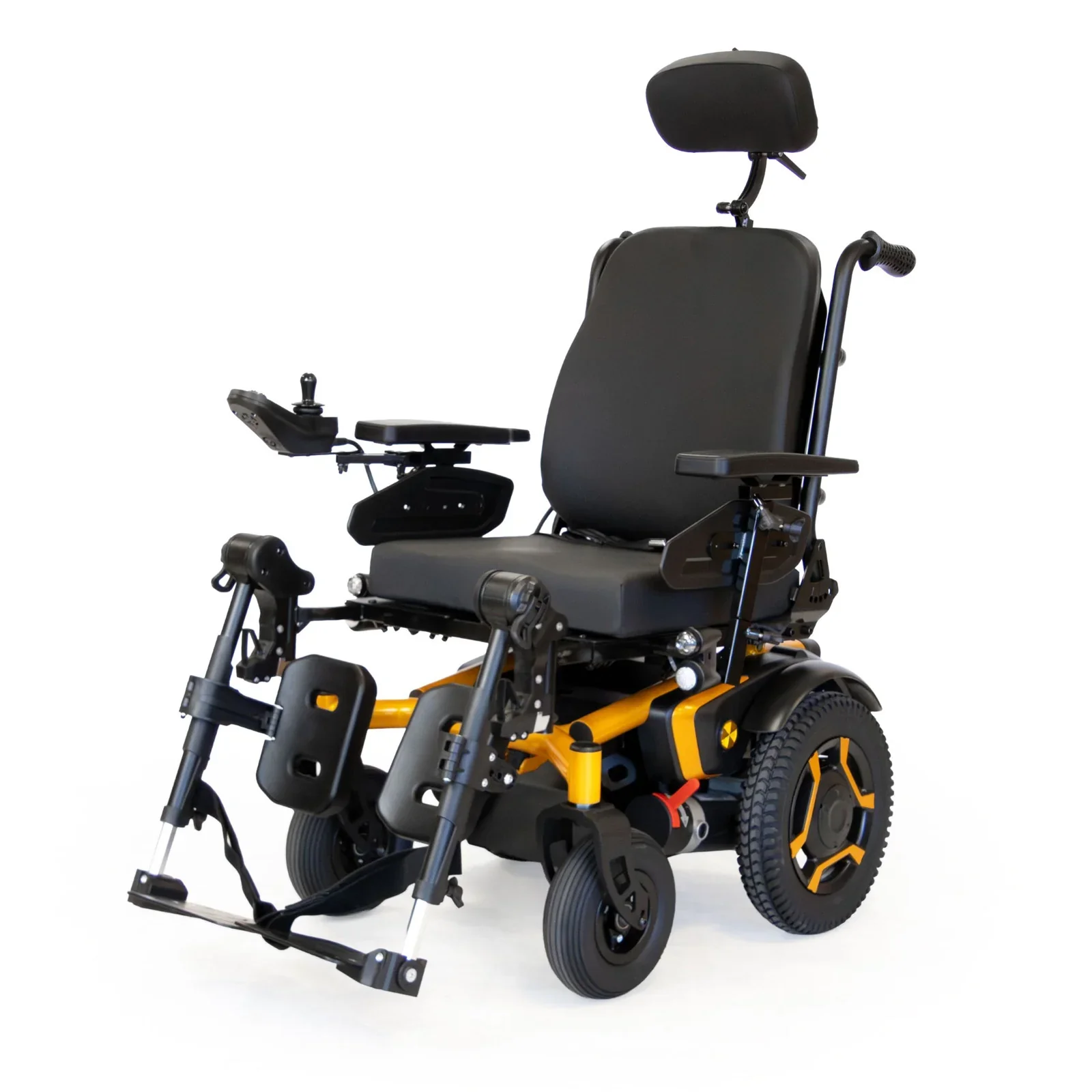

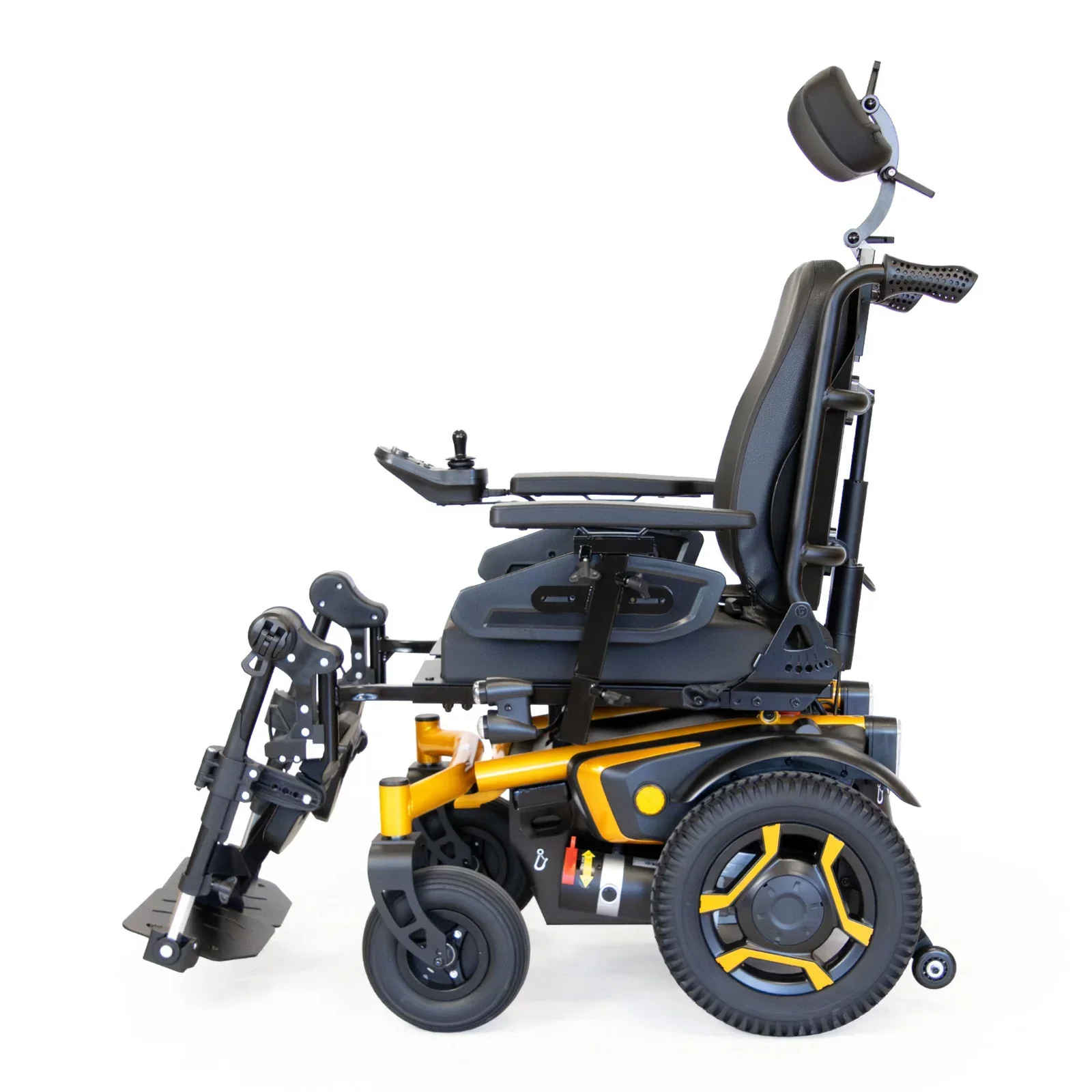

Ikon Star Tilt Power Wheelchair

A comfortable, capable powerchair with power tilt (0°–25°) and recline (90°–140°), adjustable seat width, footrests, armrests and headrest. Twin 340W motors give a 10km/h top speed and 30km range, with 14″ pneumatic rear wheels, rear suspension and a 900mm turning radius for indoor and outdoor use. Crash tested to ISO 7176:19. Supports users up to 136kg.

FEATURES

– Ergonomic seat design to ensure maximum comfort – Pan seat arrangement for various seating systems
– Advanced technology provides the user with both independence and safety
– Adjustable width seat & backrest
– Recline function – Power tilt seating

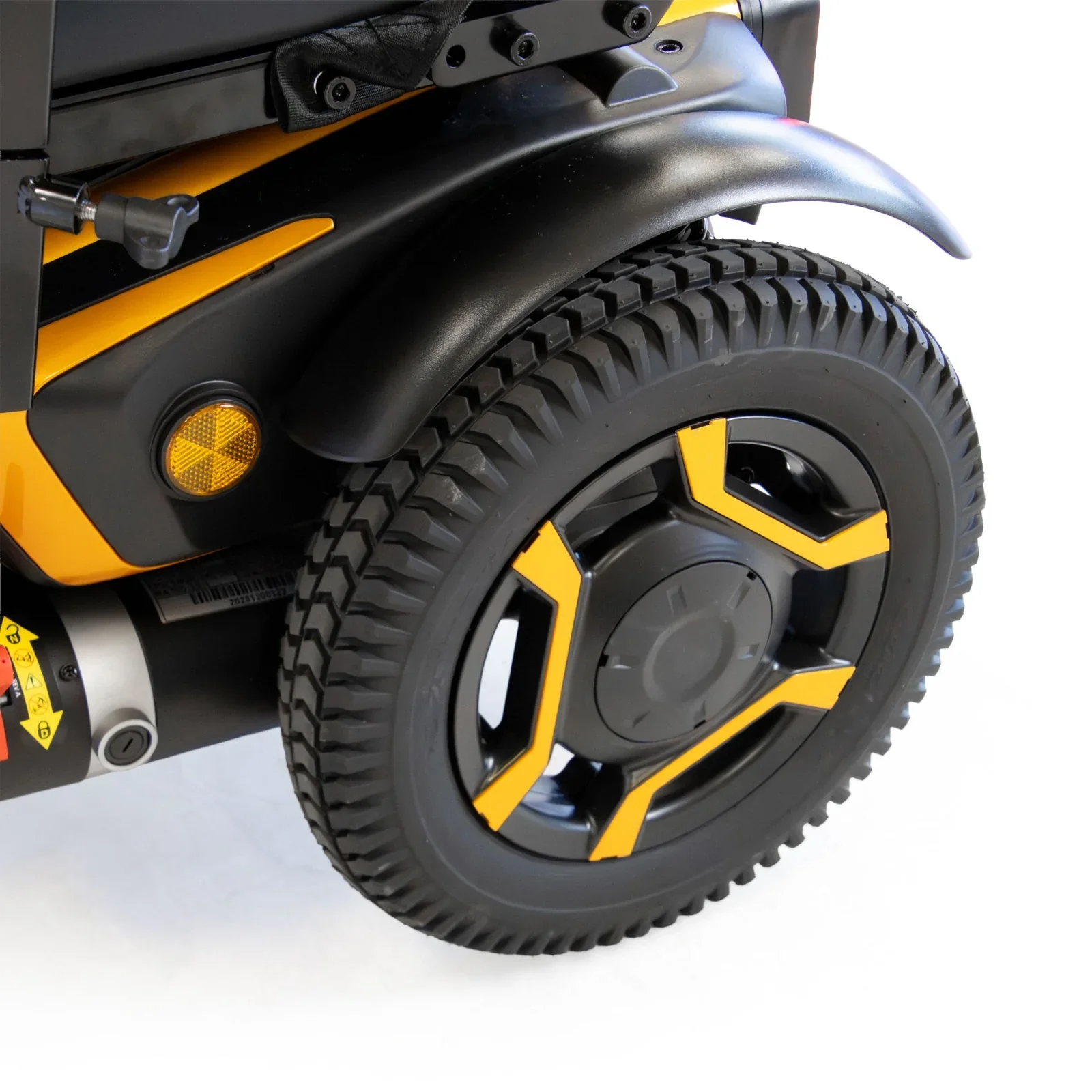

– High ground clearance with 14” drive wheel

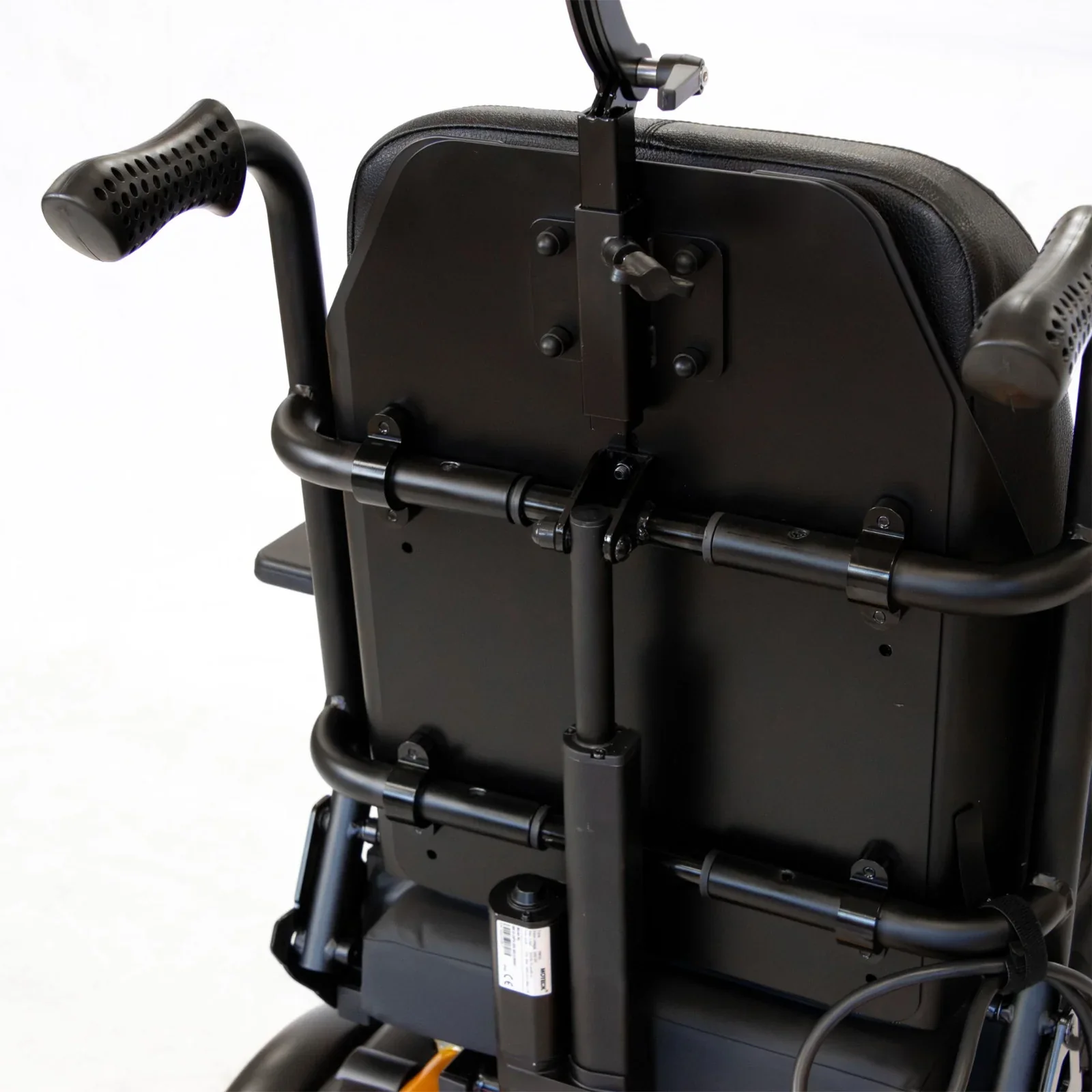

– Certified safety belt – Adjustable footrests, armrests and headrest
– Switch between driving/seat tilt mode easily
– Front & rear lights
– Rear suspension
– Anti-tip wheels
– Drive & freewheel mode
– Elevating swing away legrests
– Fold up footplates
– Flat free front wheels, large pneumatic rear tyres

SPECIFICATIONS
-Overall Length: 1080mm
-Overall Width: 580mm
-Overall Height: 1215mm
-Overall (L) with legrest: 1155 – 1820mm
-Folded length: 850mm
-Folded width: 600mm
-Folded height: 970mm
-Backrest angle range: 90°- 144°
-Backrest height: 520mm
-Backrest width: 430 – 480mm
-Footrest to seat: 450 – 575mm
-Leg to seat angle: 110°
-Floor to seat pan: 453mm
-Floor to std. seat cushion: 510mm
-Armrest to seat distance: 170 – 290mm
-Seat depth: 430 – 480mm
-Seat width: 430 – 480mm
-Seat tilt range: 0° – 22.5°
-Motor: 2 x 340 W
-Battery: 24V52A
-Battery charger: 6 Amp
-Rear wheels diameter: 14 x 3 “
-Front wheels diameter: 9 x 3 “
-Max. user weight: 136kg
-Product weight: 106.5kg
-Battery weight: 26kg
-Max. speed: 10km/h
-Min braking distance at max speed: 1700mm
-Obstacle clearance: 50mm
-Safe climbing angle: 10°
-Turning Radius: 900mm
-Range: 30km
